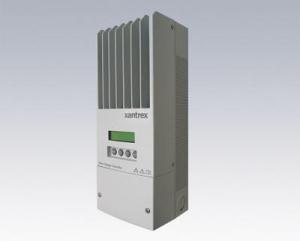

Dispozitivele de control a incarcarii se numesc regulatoare de incarcare si sunt indispensabile in sistemele de energie alternativa. XW MPPT - regulator solarElectrical Specifications
Nominal battery voltage 12, 24, 36, 48, 60 Vdc
Maximum PV array voltage (operating) 140 Vdc
Maximum PV array open circuit voltage 150 Vdc
Array short-circuit current 60 Adc maximum
Maximum and minimum wire size in conduit #6 AWG to #14 AWG
Total power consumption while operating 2.5 W (tare)
Charger regulation method: Three-stage (bulk, absorption, float)
Two-stage (bulk, absorption)

Mechanical Specifications
Dimensions (H × W × D) 14 ½ × 5 ¾ × 5 ½” (368 × 146 × 138 mm)
Weight (Controller only) 10.75 lb (4.8 kg)
Weight (shipping) 17.6 lb (8 kg)
Shipping dimensions (H × W × D) 19 × 9 × 9 ¾” (483 × 229 × 350 mm)
Mounting Vertical wall mount
Standard warranty Five years
Part number 865-1030

Environmental Specifications
Enclosure type Indoor, ventilated, sheet metal chassis with 7/8”and 1”
(22.22 mm and 27.76 mm) knockouts and aluminum heat-sink
Operating temperature range (full power) -4 to 113 °F (-20 to +45 °C)
Storage temperature -40 to 185 °F (-40 to +85 °C)
Altitude limit (operating) Sea level to 15,000 feet (4572 m) @ 15 °C

Optional Accessories
XW System Control Panel 865-1050
XW Automatic Generator Start 865-1060
Network cables:
3 feet (0.9 m) 809-0935
5 feet (1.5 m) 809-0936
7 feet (2.0 m) 809-0937
10 feet (3.0 m) 809-0938
14 feet (4.3 m) 809-0939
25 feet (7.6 m) 809-0940
50 feet (15.2 m) 809-0941
75 feet (22.9 m) 809-0942
Network terminators: Male (two per pack): 809-0901
Female (two per pack): 809-0905
